March 14, 2025

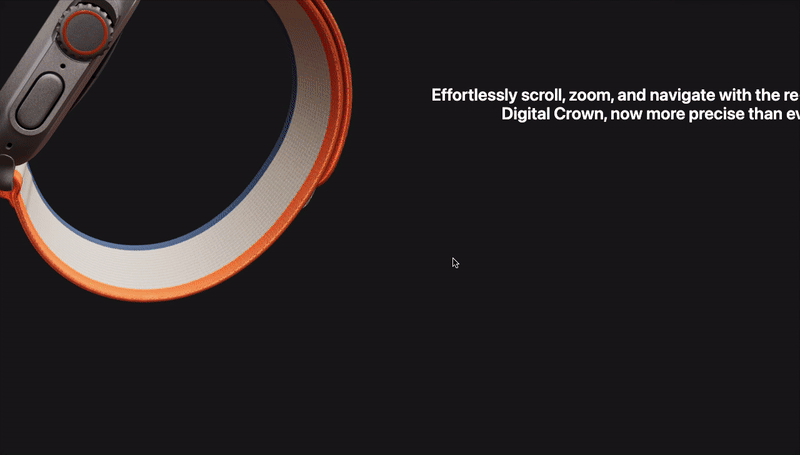

React-three-fiber(apple watch)
https://www.youtube.com/watch?v=lrsB-4SN4us&ab_channel=TechyWebDev
import { useRef, useEffect } from "react";
import { useFrame } from "@react-three/fiber";
import { Vector3 } from "three";
/**
* Custom hook for handling camera transitions based on progress
* @param {Object} options - Configuration options
* @param {Array<Array<number>>} options.positions - Array of camera position waypoints [x,y,z]
* @param {number} options.progress - Current progress value (0-1)
* @param {Vector3} [options.lookAt] - Point for the camera to look at (default: origin)
* @param {boolean} [options.smoothing] - Whether to apply smoothing to camera movement
* @param {number} [options.smoothingFactor] - Smoothing factor (0-1), lower is smoother
* @returns {Object} Camera reference
*/
export const useCameraTransition = ({
positions,
progress,
lookAt = new Vector3(0, 0, 0),
smoothing = false,
smoothingFactor = 0.1,
}) => {
const cameraRef = useRef();
const targetPosition = useRef(new Vector3());
useFrame(() => {
if (!cameraRef.current) return;
// Calculate the current position based on progress
const index = Math.floor(progress * (positions.length - 1));
const nextIndex = Math.min(index + 1, positions.length - 1);
const t = (progress * (positions.length - 1)) % 1;
// Calculate the interpolated position
const [x, y, z] = positions[index].map(
(v, i) => v * (1 - t) + positions[nextIndex][i] * t
);
// Update the target position
targetPosition.current.set(x, y, z);
if (smoothing) {
// Apply smoothing by lerping current position toward target
cameraRef.current.position.lerp(targetPosition.current, smoothingFactor);
} else {
// Set position directly without smoothing
cameraRef.current.position.copy(targetPosition.current);
}
// Make camera look at the specified point
cameraRef.current.lookAt(lookAt);
});
return cameraRef;
};
import {
Environment,
PerspectiveCamera,
} from "@react-three/drei";
import { AppleWatch } from "./AppleWatch";
import { useRef } from "react";
import { useCameraTransition } from "./useCameraTransition";
// 預設的幾個鏡頭位置
const positions = [
[3.5, 2.17, 3.7], // 第 1 個位置
[3.7, 0.6, 0.7], // 第 2 個位置
[2.3, 0.87, -4.2], // 第 3 個位置
[0, 2.5, 3.6], // 第 4 個位置
];
export const Scene = ({ progress }) => {
const cameraRef = useCameraTransition({
positions,
progress,
smoothing: true, // 可選：啟用平滑過渡
});
return (
<>
<PerspectiveCamera
ref={cameraRef}
fov={45}
near={0.1}
far={10000}
makeDefault
/>
<Environment preset="city" />
<AppleWatch />
</>
);
};
---
# React Three Fiber 相機過渡完整示例
以下是五種不同的相機過渡方案的完整實現，包括如何封裝和使用它們。
## 1. 使用自定義 Hook 方法（基礎方法）
### `useCameraTransition.js
```js
import { useRef } from "react";
import { useFrame } from "@react-three/fiber";
import { Vector3 } from "three";
/**
* 自定義 Hook 處理基於進度的相機過渡
* @param {Object} options - 配置選項
* @param {Array<Array<number>>} options.positions - 相機位置路徑點陣列 [x,y,z]
* @param {number} options.progress - 當前進度值 (0-1)
* @param {Vector3} [options.lookAt] - 相機看向的點 (默認: 原點)
* @param {boolean} [options.smoothing] - 是否應用平滑移動
* @param {number} [options.smoothingFactor] - 平滑因子 (0-1)，越小越平滑
* @returns {Object} 相機引用
*/
export const useCameraTransition = ({
positions,
progress,
lookAt = new Vector3(0, 0, 0),
smoothing = false,
smoothingFactor = 0.1,
}) => {
const cameraRef = useRef();
const targetPosition = useRef(new Vector3());
useFrame(() => {
if (!cameraRef.current) return;
// 基於進度計算當前位置
const index = Math.floor(progress * (positions.length - 1));
const nextIndex = Math.min(index + 1, positions.length - 1);
const t = (progress * (positions.length - 1)) % 1;
// 計算插值位置
const [x, y, z] = positions[index].map(
(v, i) => v * (1 - t) + positions[nextIndex][i] * t
);
// 更新目標位置
targetPosition.current.set(x, y, z);
if (smoothing) {
// 應用平滑處理，使當前位置向目標位置移動
cameraRef.current.position.lerp(targetPosition.current, smoothingFactor);
} else {
// 直接設置位置，無平滑處理
cameraRef.current.position.copy(targetPosition.current);
}
// 使相機朝向指定點
cameraRef.current.lookAt(lookAt);
});
return cameraRef;
};使用示例：
import { Canvas } from "@react-three/fiber";
import { PerspectiveCamera, Environment } from "@react-three/drei";
import { useCameraTransition } from "./useCameraTransition";
import { Model } from "./Model";
// 預先定義的相機位置
const cameraPositions = [
[3.5, 2.17, 3.7], // 位置 1
[3.7, 0.6, 0.7], // 位置 2
[2.3, 0.87, -4.2], // 位置 3
[0, 2.5, 3.6], // 位置 4
];
const Scene = ({ progress }) => {
// 使用我們的自定義 hook
const cameraRef = useCameraTransition({
positions: cameraPositions,
progress,
smoothing: true,
smoothingFactor: 0.05,
});
return (
<>
<PerspectiveCamera
ref={cameraRef}
fov={45}
near={0.1}
far={1000}
makeDefault
/>
<Environment preset="city" />
<Model />
</>
);
};
export default function App() {
// 在實際應用中，進度可能來自滾動、滑塊等
const [progress, setProgress] = useState(0);
// 進度控制 UI 示例
return (
<div style={{ width: "100vw", height: "100vh" }}>
<input
type="range"
min="0"
max="1"
step="0.01"
value={progress}
onChange={(e) => setProgress(parseFloat(e.target.value))}
style={{ position: "absolute", bottom: 20, left: 20, zIndex: 10 }}
/>
<Canvas>
<Scene progress={progress} />
</Canvas>
</div>
);
}2. 使用 Zustand 狀態管理的方法
useCameraStore.js
import create from 'zustand';
import { Vector3 } from 'three';
// 創建相機狀態存儲
export const useCameraStore = create((set) => ({
// 相機狀態
position: new Vector3(0, 0, 0),
lookAt: new Vector3(0, 0, 0),
// 更新相機位置
setPosition: (position) => set({ position }),
// 更新相機朝向
setLookAt: (lookAt) => set({ lookAt }),
// 基於進度更新相機
updateCameraByProgress: (progress, positions) => {
const index = Math.floor(progress * (positions.length - 1));
const nextIndex = Math.min(index + 1, positions.length - 1);
const t = (progress * (positions.length - 1)) % 1;
// 計算插值位置
const [x, y, z] = positions[index].map(
(v, i) => v * (1 - t) + positions[nextIndex][i] * t
);
set({ position: new Vector3(x, y, z) });
}
}));
// 創建相機控制 Hook
export const useCameraControl = ({ positions, progress }) => {
const { updateCameraByProgress } = useCameraStore();
useEffect(() => {
updateCameraByProgress(progress, positions);
}, [progress, positions, updateCameraByProgress]);
return null;
};CameraController.js
import { useRef, useEffect } from 'react';
import { useThree, useFrame } from '@react-three/fiber';
import { useCameraStore } from './useCameraStore';
export const CameraController = ({ smoothing = true, smoothingFactor = 0.1 }) => {
const { camera } = useThree();
const { position, lookAt } = useCameraStore();
useFrame(() => {
if (smoothing) {
// 平滑過渡到目標位置
camera.position.lerp(position, smoothingFactor);
} else {
camera.position.copy(position);
}
// 相機朝向
camera.lookAt(lookAt);
});
return null;
};使用示例：
import { Canvas } from "@react-three/fiber";
import { PerspectiveCamera, Environment } from "@react-three/drei";
import { CameraController } from "./CameraController";
import { useCameraControl, useCameraStore } from "./useCameraStore";
import { Model } from "./Model";
import { useState } from "react";
// 預先定義的相機位置
const cameraPositions = [
[3.5, 2.17, 3.7],
[3.7, 0.6, 0.7],
[2.3, 0.87, -4.2],
[0, 2.5, 3.6],
];
const Scene = ({ progress }) => {
// 使用相機控制 Hook
useCameraControl({
positions: cameraPositions,
progress,
});
return (
<>
<CameraController smoothing={true} smoothingFactor={0.05} />
<PerspectiveCamera fov={45} near={0.1} far={1000} makeDefault />
<Environment preset="city" />
<Model />
</>
);
};
export default function App() {
const [progress, setProgress] = useState(0);
return (
<div style={{ width: "100vw", height: "100vh" }}>
<input
type="range"
min="0"
max="1"
step="0.01"
value={progress}
onChange={(e) => setProgress(parseFloat(e.target.value))}
style={{ position: "absolute", bottom: 20, left: 20, zIndex: 10 }}
/>
<Canvas>
<Scene progress={progress} />
</Canvas>
</div>
);
}3. 使用 GSAP 動畫庫的方法
useCameraAnimation.js
import { useRef, useEffect } from "react";
import { useThree } from "@react-three/fiber";
import gsap from "gsap";
/**
* 使用 GSAP 控制相機動畫的 Hook
* @param {Object} options - 配置選項
* @param {Array<Array<number>>} options.positions - 相機位置陣列
* @param {number} options.progress - 當前進度值 (0-1)
* @param {number} [options.duration] - 動畫持續時間（秒）
* @param {string} [options.ease] - GSAP 緩動類型
* @returns {Object} 相機引用和動畫控制函數
*/
export const useCameraAnimation = ({
positions,
progress,
duration = 0.8,
ease = "power2.out"
}) => {
const { camera } = useThree();
const timeline = useRef();
const prevIndex = useRef(0);
useEffect(() => {
// 清理任何進行中的動畫
if (timeline.current) {
timeline.current.kill();
}
// 計算目標位置
const index = Math.floor(progress * (positions.length - 1));
const nextIndex = Math.min(index + 1, positions.length - 1);
const t = (progress * (positions.length - 1)) % 1;
// 只有當我們移動到新的位置區間時才創建新的時間線
if (index !== prevIndex.current) {
prevIndex.current = index;
}
// 計算目標位置的插值
const [x, y, z] = positions[index].map(
(v, i) => v * (1 - t) + positions[nextIndex][i] * t
);
// 創建新的時間線動畫
timeline.current = gsap.timeline();
timeline.current.to(camera.position, {
x,
y,
z,
duration,
ease,
onUpdate: () => {
camera.lookAt(0, 0, 0);
}
});
}, [camera, positions, progress, duration, ease]);
return {
cameraRef: { current: camera },
play: () => timeline.current?.play(),
pause: () => timeline.current?.pause()
};
};使用示例：
import { Canvas } from "@react-three/fiber";
import { PerspectiveCamera, Environment } from "@react-three/drei";
import { useCameraAnimation } from "./useCameraAnimation";
import { Model } from "./Model";
import { useState, useEffect } from "react";
// 引入 GSAP
import { gsap } from "gsap";
// 預先定義的相機位置
const cameraPositions = [
[3.5, 2.17, 3.7],
[3.7, 0.6, 0.7],
[2.3, 0.87, -4.2],
[0, 2.5, 3.6],
];
const Scene = ({ progress }) => {
// 使用 GSAP 相機動畫 Hook
const { cameraRef } = useCameraAnimation({
positions: cameraPositions,
progress,
duration: 0.5,
ease: "power1.inOut"
});
return (
<>
<PerspectiveCamera
ref={cameraRef}
fov={45}
near={0.1}
far={1000}
makeDefault
/>
<Environment preset="city" />
<Model />
</>
);
};
export default function App() {
const [progress, setProgress] = useState(0);
// 使用 GSAP 做平滑的進度動畫（可選）
useEffect(() => {
const handleScroll = () => {
const scrollPercent = window.scrollY / (document.body.scrollHeight - window.innerHeight);
gsap.to({ progress: progress }, {
progress: scrollPercent,
duration: 0.5,
onUpdate: () => setProgress(scrollPercent)
});
};
window.addEventListener("scroll", handleScroll);
return () => window.removeEventListener("scroll", handleScroll);
}, []);
return (
<div style={{ width: "100vw", height: "100vh" }}>
<input
type="range"
min="0"
max="1"
step="0.01"
value={progress}
onChange={(e) => setProgress(parseFloat(e.target.value))}
style={{ position: "absolute", bottom: 20, left: 20, zIndex: 10 }}
/>
<Canvas>
<Scene progress={progress} />
</Canvas>
</div>
);
}4. 使用 Three.js 曲線插值的方法
useCameraPath.js
import { useRef, useMemo, useEffect } from "react";
import { useFrame, useThree } from "@react-three/fiber";
import { CatmullRomCurve3, Vector3, MathUtils } from "three";
/**
* 使用 Three.js 曲線路徑控制相機的 Hook
* @param {Object} options - 配置選項
* @param {Array<Array<number>>} options.positions - 相機位置陣列 [x,y,z]
* @param {number} options.progress - 當前進度 (0-1)
* @param {boolean} [options.closed] - 是否閉合曲線
* @param {boolean} [options.smoothing] - 是否平滑移動
* @param {number} [options.smoothingFactor] - 平滑因子 (0-1)
* @param {boolean} [options.debug] - 是否顯示調試模式
* @returns {Object} - 相機引用和曲線路徑
*/
export const useCameraPath = ({
positions,
progress,
closed = false,
smoothing = false,
smoothingFactor = 0.1,
debug = false,
}) => {
const { camera } = useThree();
const targetPosition = useRef(new Vector3());
// 創建 Catmull-Rom 曲線
const curve = useMemo(() => {
const points = positions.map(pos => new Vector3(pos[0], pos[1], pos[2]));
return new CatmullRomCurve3(points, closed);
}, [positions, closed]);
// 在每一幀更新相機位置
useFrame(() => {
// 從曲線上獲取點
targetPosition.current = curve.getPointAt(progress);
if (smoothing) {
// 平滑移動到目標點
camera.position.lerp(targetPosition.current, smoothingFactor);
} else {
// 直接設置位置
camera.position.copy(targetPosition.current);
}
// 計算前方的點，用於相機朝向
const lookAhead = MathUtils.clamp(progress + 0.01, 0, 0.99);
const lookAtPoint = curve.getPointAt(lookAhead);
// 相機可以沿曲線看向前方，或者看向原點
camera.lookAt(lookAtPoint); // 或者 camera.lookAt(0, 0, 0);
});
// 返回相機引用和曲線，方便調試
return {
cameraRef: { current: camera },
curve,
};
};使用示例：
import { Canvas } from "@react-three/fiber";
import { PerspectiveCamera, Environment, Line } from "@react-three/drei";
import { useCameraPath } from "./useCameraPath";
import { Model } from "./Model";
import { useState } from "react";
import { BufferGeometry, Vector3 } from "three";
// 預先定義的相機位置
const cameraPositions = [
[3.5, 2.17, 3.7],
[3.7, 0.6, 0.7],
[2.3, 0.87, -4.2],
[0, 2.5, 3.6],
// 添加更多點使曲線更平滑
[2.0, 2.0, 2.0],
[4.0, 1.0, 0.0],
];
// 可選的路徑可視化組件
const PathVisualization = ({ curve, segments = 50 }) => {
// 生成曲線上的點
const points = Array.from({ length: segments }, (_, i) => {
const t = i / (segments - 1);
return curve.getPointAt(t);
});
// 創建線段幾何體
const lineGeometry = new BufferGeometry().setFromPoints(points);
return (
<Line
points={points}
color="red"
lineWidth={1}
/>
);
};
const Scene = ({ progress, showPath = false }) => {
// 使用相機路徑 Hook
const { cameraRef, curve } = useCameraPath({
positions: cameraPositions,
progress,
closed: false,
smoothing: true,
smoothingFactor: 0.05,
});
return (
<>
<PerspectiveCamera
ref={cameraRef}
fov={45}
near={0.1}
far={1000}
makeDefault
/>
<Environment preset="city" />
<Model />
{/* 顯示相機路徑（調試用） */}
{showPath && <PathVisualization curve={curve} segments={100} />}
</>
);
};
export default function App() {
const [progress, setProgress] = useState(0);
const [showPath, setShowPath] = useState(false);
return (
<div style={{ width: "100vw", height: "100vh" }}>
<div style={{ position: "absolute", bottom: 20, left: 20, zIndex: 10 }}>
<input
type="range"
min="0"
max="1"
step="0.01"
value={progress}
onChange={(e) => setProgress(parseFloat(e.target.value))}
/>
<label>
<input
type="checkbox"
checked={showPath}
onChange={() => setShowPath(!showPath)}
/>
顯示路徑
</label>
</div>
<Canvas>
<Scene progress={progress} showPath={showPath} />
</Canvas>
</div>
);
}5. 使用 CameraControls 的方法
useCameraControlsTransition.js
import { useRef, useEffect } from "react";
import { useThree } from "@react-three/fiber";
import CameraControls from "camera-controls";
import * as THREE from "three";
// 初始化 CameraControls
CameraControls.install({ THREE });
/**
* 使用 CameraControls 處理相機過渡的 Hook
* @param {Object} options - 配置選項
* @param {Array<Array<number>>} options.positions - 相機位置路徑點陣列 [x,y,z]
* @param {number} options.progress - 當前進度值 (0-1)
* @param {Array<Array<number>>} [options.targetPositions] - 可選的目標位置陣列
* @param {number} [options.transitionDuration] - 過渡動畫持續時間（秒）
* @returns {Object} CameraControls 實例的引用
*/
export const useCameraControlsTransition = ({
positions,
progress,
targetPositions = [[0, 0, 0]], // 默認目標是原點
transitionDuration = 0.5,
}) => {
const controlsRef = useRef();
const { camera, gl } = useThree();
const prevPositionIndex = useRef(-1);
// 在第一次渲染時創建 CameraControls
useEffect(() => {
if (!controlsRef.current) {
controlsRef.current = new CameraControls(camera, gl.domElement);
controlsRef.current.dollyToCursor = false;
controlsRef.current.infinityDolly = true;
}
return () => {
controlsRef.current?.dispose();
};
}, [camera, gl]);
// 處理進度變化
useEffect(() => {
if (!controlsRef.current) return;
// 計算當前索引
const index = Math.floor(progress * (positions.length - 1));
// 如果進入新的位置區間，立即過渡
if (index !== prevPositionIndex.current) {
prevPositionIndex.current = index;
// 獲取目標位置，如果沒有特定的目標位置，使用默認的原點
const targetPosition = targetPositions[Math.min(index, targetPositions.length - 1)] || [0, 0, 0];
// 設置相機位置和目標
controlsRef.current.setLookAt(
positions[index][0],
positions[index][1],
positions[index][2],
targetPosition[0],
targetPosition[1],
targetPosition[2],
true // 啟用過渡動畫
);
// 設置過渡持續時間
controlsRef.current.dampingFactor = transitionDuration;
}
// 如果在位置區間之間，計算插值
else {
const t = (progress * (positions.length - 1)) % 1;
const nextIndex = Math.min(index + 1, positions.length - 1);
// 計算當前位置和下一個位置之間的插值
const [x, y, z] = positions[index].map(
(v, i) => v * (1 - t) + positions[nextIndex][i] * t
);
// 獲取當前和下一個目標位置
const currentTarget = targetPositions[Math.min(index, targetPositions.length - 1)] || [0, 0, 0];
const nextTarget = targetPositions[Math.min(nextIndex, targetPositions.length - 1)] || [0, 0, 0];
// 計算目標的插值
const [targetX, targetY, targetZ] = currentTarget.map(
(v, i) => v * (1 - t) + nextTarget[i] * t
);
// 設置相機位置和目標，無需過渡動畫
controlsRef.current.setLookAt(
x, y, z,
targetX, targetY, targetZ,
false // 不啟用過渡動畫
);
}
}, [progress, positions, targetPositions, transitionDuration]);
return controlsRef;
};使用示例：
import { Canvas } from "@react-three/fiber";
import { PerspectiveCamera, Environment } from "@react-three/drei";
import { useCameraControlsTransition } from "./useCameraControlsTransition";
import { Model } from "./Model";
import { useEffect } from "react";
// 預先定義的相機位置
const cameraPositions = [
[3.5, 2.17, 3.7],
[3.7, 0.6, 0.7],
[2.3, 0.87, -4.2],
[0, 2.5, 3.6],
];
// 相機看向的目標位置（可選）
const targetPositions = [
[0, 0, 0], // 始終看向中心
[0, 0.5, 0], // 稍微看向上方
[0, 0, 0], // 回到中心
[0, -0.5, 0], // 稍微看向下方
];
const Scene = ({ progress }) => {
// 使用 CameraControls 相機控制 Hook
const controlsRef = useCameraControlsTransition({
positions: cameraPositions,
progress,
targetPositions,
transitionDuration: 0.7,
});
// 需要在每一幀更新控制器
useEffect(() => {
const updateControls = (delta) => {
controlsRef.current?.update(delta);
};
// 添加到動畫循環
return () => {
// 清理
};
}, [controlsRef]);
return (
<>
<PerspectiveCamera fov={45} near={0.1} far={1000} makeDefault />
<Environment preset="city" />
<Model />
</>
);
};
export default function App() {
const [progress, setProgress] = useState(0);
return (
<div style={{ width: "100vw", height: "100vh" }}>
<input
type="range"
min="0"
max="1"
step="0.01"
value={progress}
onChange={(e) => setProgress(parseFloat(e.target.value))}
style={{ position: "absolute", bottom: 20, left: 20, zIndex: 10 }}
/>
<Canvas>
<Scene progress={progress} />
</Canvas>
</div>
);
}總結
以上五種方法各有優勢：
- 自定義 Hook 方法：簡單直接，適合大多數基本場景。
- Zustand 狀態管理：當需要在應用的多個部分共享相機狀態時很有用。
- GSAP 動畫庫：提供更多高級的動畫控制和緩動功能。
- Three.js 曲線插值：適合需要平滑曲線路徑的場景，而不僅僅是線性插值。
- CameraControls：提供豐富的相機控制功能，包括檢查碰撞、邊界和約束。
根據你的專案需求和複雜度選擇最適合的方法。
